Category:	Discrete Semiconductor Products Diodes Rectifiers Diode Arrays	Product Status:	Active
Current - Average Rectified (Io) (per Diode):	150mA	Operating Temperature - Junction:	-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA	Package:	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Series:	-	Diode Configuration:	2 Pair Common Anode
Supplier Device Package:	SOT-563	Reverse Recovery Time (trr):	4 ns
Mfr:	Panjit International Inc.	Technology:	Standard
Package / Case:	SOT-563, SOT-666	Voltage - DC Reverse (Vr) (Max):	100 V
Mounting Type:	Surface Mount	Speed:	Small Signal =< 200mA (Io), Any Speed
Base Product Number:	BAW56	Current - Reverse Leakage @ Vr:	500 nA @ 25 V

Category:	Discrete Semiconductor Products Diodes Rectifiers Diode Arrays
Product Status:	Active
Current - Average Rectified (Io) (per Diode):	150mA
Operating Temperature - Junction:	-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Package:	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Series:	-
Diode Configuration:	2 Pair Common Anode
Supplier Device Package:	SOT-563
Reverse Recovery Time (trr):	4 ns
Mfr:	Panjit International Inc.
Technology:	Standard
Package / Case:	SOT-563, SOT-666
Voltage - DC Reverse (Vr) (Max):	100 V
Mounting Type:	Surface Mount
Speed:	Small Signal =< 200mA (Io), Any Speed
Base Product Number:	BAW56
Current - Reverse Leakage @ Vr:	500 nA @ 25 V

Δελτίο ΕΚΑΧ της 10ης Ιουνίου 2004

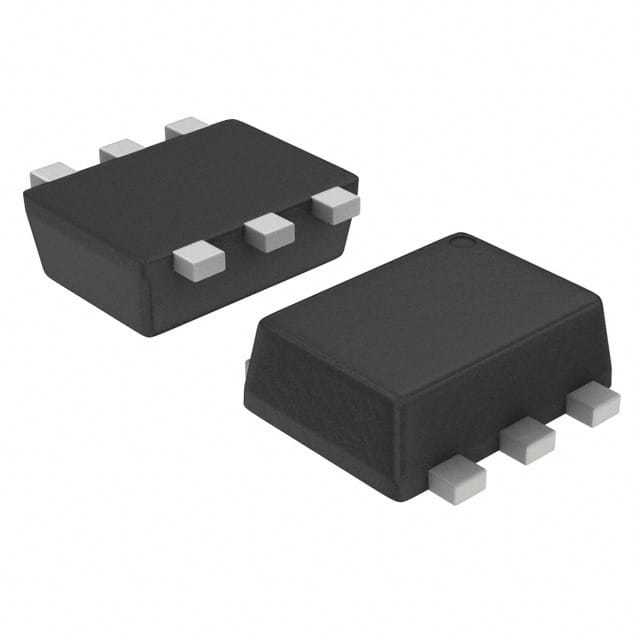

Διοδιακή συστοιχία 2 ζευγάρια κοινή άνοδος 100 V 150mA επιφάνειας SOT-563, SOT-666
